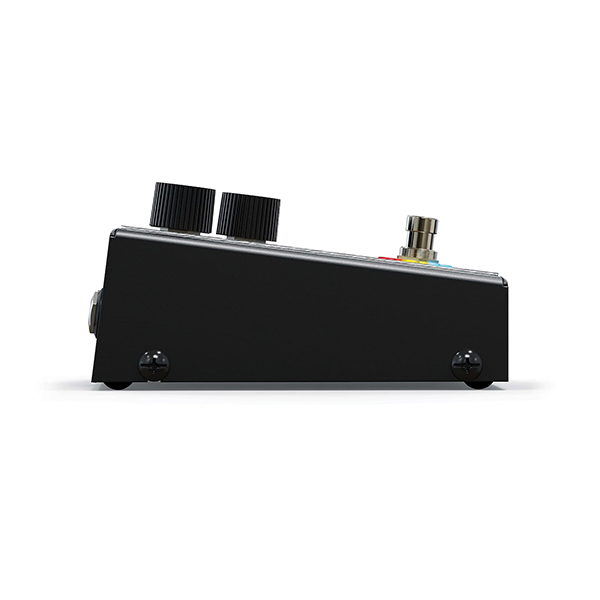

Maestro Discoverer Delay Guitar Effect Pedal


1 in stock

SKU: Maestro-Discoverer-Delay-Effect-Pedal-1-1-1 Category: Tag:

Maestro Discoverer Delay Guitar Effect Pedal

The Discoverer is a modern analog delay pedal that proudly utilizes legendary analog bucket brigade device (BBD) technology to deliver classic, warm, and inviting delay sounds. The intuitive 3-knob control layout lets users quickly dial up the length of the Delay time (with a range from 20 ms to 600 ms), the amount of Sustain (delay repeats), and adjust the level of the delays in the Mix. A toggle switch engages built-in modulation that applies anything from a slightly saturated, tape-like wow and flutter effect to a heavily pitch-shifted modulation effect to the delayed signal. Two internal trim pots allow adjustments to the Rate (speed) and Width (sweep range) of the modulation. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.

All proceeds from the purchase of this effect pedal will be donated to the Music Has Healing Power foundation, to be used for the Shriners Hospitals for Children music therapy program and music rooms. It will help provide children and their families in need and who are going through medical challenges with the healing gift of music, musical instruments, compassion, love and hope.

This effect is brand new. The Discoverer Delay is also excellent with keyboards, percussion, bass, orchestral instruments, sound design and more.

Please don’t hesitate to get in touch with any questions.

Free Shipping!


Maestro Discoverer Delay Guitar Effect Pedal Specifications

Controls: Delay, Mix, Sustain; internal Modulation Rate and Width trim pots

Internal Trim Pots: Two internal trim pots allow the user to adjust the Rate (speed) and Width (sweep range) of the modulation that operates when the Mode switch is in the up (MOD-ON) position. Using a small screwdriver, turn clockwise to increase, counterclockwise to decrease the modulation Rate and Width.

Switches: True Bypass footswitch, Mod On/Off Modulation Mode toggle switch
LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Signal Processing: All-Analog
Delay Time Range: 20 ms – 600 ms
Power Requirements: 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
Current Draw: 61.3 mA
Power On Switch: Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.

Input Impedance: 470 kOhms
Output Impedance: 1 kOhms
Switching: True Bypass
Dimensions (D x W x H): 5.04” x 3.45” x 2.50” (128.0 mm x 87.6 mm x 63.5 mm)
Weight: Net 1.27 lb. (576.1 gm.), Gross 1.64 lb. (743.9 gm.)
